Lecture 04-1: Normalization and Data Modeling

DATA 503: Fundamentals of Data Engineering

Author
Affiliation

Lucas P. Cordova, Ph.D.

Willamette University

Published

February 2, 2026

Abstract

This lecture covers database normalization and data modeling fundamentals. We explore the normalization process from messy flat files to well-structured relational schemas, practice with the Dunder Mifflin employee dataset, explore database design for the Oregon Turtle Conservation project, and learn to create Entity-Relationship diagrams using draw.io.

The Art of Database Design

Today we learn to structure data so it does not structure us.

Why Normalization Matters

The Spreadsheet Problem

You have probably seen spreadsheets like this in the wild:

OrderID Customer CustomerEmail Product1 Qty1 Product2 Qty2 Product3 Qty3
1001 Acme Corp orders@acme.com Widget 5 Gadget 2
1002 Acme Corp orders@acme.com Sprocket 10
1003 Beta Inc purchasing@beta.io Widget 3 Gadget 1 Sprocket 7

This looks reasonable at first glance. Then someone orders four products.

Data Anomalies: The Horror Stories

When data is poorly structured, three types of anomalies haunt your database:

If Acme Corp changes their email address, you must update every single row where they appear. Miss one? Now you have conflicting data.

OrderID 1001: orders@acme.com
OrderID 1002: orders_new@acme.com  -- Oops!

You want to add a new customer who has not placed an order yet. Where do you put them? The table requires an OrderID, but they have no orders.

You either:

  • Invent a fake order (bad)
  • Leave OrderID NULL (breaks the key)
  • Create a separate customer table (correct)

If you delete the only order from a customer, you lose all information about that customer. They vanish from your database like they never existed.

The Cost of Messy Data

Bad database design is expensive:

  • Storage bloat from redundant data
  • Slower queries from scanning duplicates
  • Data inconsistency from update anomalies
  • Developer headaches from complex application logic
  • Lost data from delete anomalies

Normalization prevents all of these problems.

What Is Normalization?

Normalization is the process of organizing data to:

  • Minimize redundancy (do not repeat yourself)
  • Eliminate anomalies (prevent bad things)
  • Ensure data integrity (keep it consistent)
  • Enable efficient querying (make it fast)

Think of it as Marie Kondo for databases. Does this column spark joy in this table? No? It belongs somewhere else.

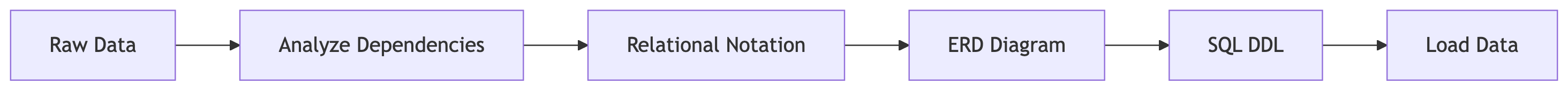

The Normalization Process Overview

The high-level workflow looks like this:

Step Question to Ask
1. Identify Entities What things exist in this domain?
2. List Attributes What describes each entity?
3. Find Keys What uniquely identifies each row?
4. Identify Dependencies What determines what?
5. Apply Normal Forms Should we split this table?
6. Create Relationships How do we connect tables with foreign keys?
7. Build ERD How do we document and communicate the design?

Normal Forms in Detail

What Is a Key?

A key is one or more attributes that uniquely identify a row in a table.

Keys are foundational to relational databases:

  • They enforce uniqueness (no duplicate rows)
  • They enable relationships between tables
  • They are essential for normalization analysis

Without keys, we cannot distinguish one row from another.

Types of Keys

The chosen key used to uniquely identify rows in a table. Every table should have exactly one primary key.

employee(employee_id, full_name, email)
         ___________
              PK

Any attribute or set of attributes that could serve as the primary key. A table may have multiple candidate keys.

In an employee table, both employee_id and email might be unique. Both are candidate keys, but we choose one as primary.

Any set of attributes that uniquely identifies rows, including extra (non-minimal) attributes.

{employee_id, full_name} is a super key, but not a candidate key because full_name is unnecessary for uniqueness.

An attribute in one table that references the primary key of another table. Creates relationships between tables.

employee.department_id -> department.department_id

Candidate Keys vs Primary Keys

Candidate keys are all possible keys. Primary key is the one you pick.

employee_id email full_name
1 michael@dm.com Michael Scott
2 dwight@dm.com Dwight Schrute
3 jim@dm.com Jim Halpert

Candidate keys here: employee_id, email

Both uniquely identify rows. We typically choose employee_id as the primary key because:

  • It is shorter and more efficient to index
  • Email addresses can change
  • Numeric IDs are easier to reference in foreign keys

Understanding Functional Dependencies

Before we dive into normal forms, we need to understand functional dependencies.

A functional dependency exists when one attribute determines another:

StudentID -> StudentName

This means: if you know the StudentID, you can determine exactly one StudentName.

Written as: StudentID functionally determines StudentName

Tip

Think of it like a function in programming: getStudentName(studentID) always returns the same name for the same ID.

Types of Dependencies

An attribute depends on the entire primary key, not just part of it.

In a table with key (OrderID, ProductID):

  • Quantity depends on BOTH OrderID AND ProductID (full)
  • CustomerName depends only on OrderID (partial)

An attribute depends on only part of a composite key.

This is a problem. It means data is in the wrong table.

A -> B -> C where A determines B, and B determines C, but B is not a key.

Example: StudentID -> DeptID -> DeptName

The student determines the department, and the department determines the department name. But DeptID is not a candidate key.

First Normal Form (1NF)

Rule: No repeating groups or arrays. Each cell contains exactly one atomic value.

EmpID Name PhoneNumbers
1 Michael 555-1234, 555-5678
2 Dwight 555-9999

Multiple values in one cell. SQL cannot query individual phone numbers easily.

EmpID Name PhoneNumber
1 Michael 555-1234
1 Michael 555-5678
2 Dwight 555-9999

One value per cell. Now we can search, filter, and index phone numbers.

1NF: Another Common Violation

Repeating columns are also a violation:

StudentID Course1 Grade1 Course2 Grade2 Course3 Grade3
S001 Math A Physics B
S002 Math B Chemistry A Biology A

What if a student takes 10 courses? 50 courses?

StudentID Course Grade
S001 Math A
S001 Physics B
S002 Math B
S002 Chemistry A
S002 Biology A

Scalable. Clean. Queryable.

Second Normal Form (2NF)

Rule: Must be in 1NF, plus no partial dependencies on the primary key.

This only matters when you have a composite primary key.

Primary Key: (OrderID, ProductID)

OrderID ProductID ProductName Quantity UnitPrice
1001 P01 Widget 5 9.99
1001 P02 Gadget 2 14.99
1002 P01 Widget 10 9.99

ProductName and UnitPrice depend only on ProductID, not the full key!

Orders Table:

OrderID ProductID Quantity
1001 P01 5
1001 P02 2
1002 P01 10

Products Table:

ProductID ProductName UnitPrice
P01 Widget 9.99
P02 Gadget 14.99

Now each table has a single theme.

Third Normal Form (3NF)

Rule: Must be in 2NF, plus no transitive dependencies.

Non-key attributes should depend only on the key, not on other non-key attributes.

EmpID EmpName DeptID DeptName DeptLocation
1 Michael D01 Management Floor 3
2 Dwight D02 Sales Floor 2
3 Jim D02 Sales Floor 2

EmpID -> DeptID -> DeptName (transitive dependency)

Employees Table:

EmpID EmpName DeptID
1 Michael D01
2 Dwight D02
3 Jim D02

Departments Table:

DeptID DeptName DeptLocation
D01 Management Floor 3
D02 Sales Floor 2

Update the department once, and it is correct everywhere.

The 3NF Mantra

Bill Kent famously summarized 3NF as:

“Every non-key attribute must provide a fact about the key, the whole key, and nothing but the key, so help me Codd.”

  • The key: Attribute depends on the primary key
  • The whole key: Depends on ALL of the key (no partial dependencies)
  • Nothing but the key: Does not depend on non-key attributes (no transitive dependencies)

Boyce-Codd Normal Form (BCNF)

Rule: A stricter version of 3NF. Every determinant must be a candidate key.

Most tables in 3NF are also in BCNF. The difference matters in edge cases with overlapping candidate keys.

Consider course scheduling where:

  • Each student takes one course per semester
  • Each course is taught by one professor
  • Each professor teaches only one course
Student Course Professor
Alice Math101 Dr. Smith
Bob Math101 Dr. Smith
Carol Phys201 Dr. Jones

Candidate keys: (Student, Course) or (Student, Professor)

Professor -> Course is a dependency, but Professor is not a superkey.

Enrollment:

Student Professor
Alice Dr. Smith
Bob Dr. Smith
Carol Dr. Jones

Teaching:

Professor Course
Dr. Smith Math101
Dr. Jones Phys201

Now every determinant is a candidate key.

When to Stop Normalizing

3NF is usually sufficient for most applications. BCNF is the practical maximum.

Higher normal forms exist (4NF, 5NF, 6NF) but are rarely needed in practice.

Warning: Over-normalization can hurt performance:

  • Too many joins slow down queries
  • Some denormalization is acceptable for read-heavy workloads
  • Data warehouses often use denormalized star schemas

The goal is eliminating anomalies, not winning a normalization contest.

Normal Forms Summary

Form Rule Fixes
1NF Atomic values only Repeating groups
2NF No partial dependencies Composite key issues
3NF No transitive dependencies Non-key -> non-key
BCNF Every determinant is a candidate key Overlapping keys

Relational Notation

What Is Relational Notation?

Relational notation is a shorthand, textual way to represent a database table’s structure, including its name, attributes, primary keys, and foreign keys.

It acts as a stepping stone between:

  • Identifying entities and attributes (conceptual design)
  • Creating ERD diagrams (visual/logical design)
  • Writing SQL CREATE statements (physical implementation)

Think of it as pseudocode for database design. ERDs are the visual, logical representation of the same information that relational notation captures in text form.

Relational Notation Syntax

The basic format is:

table_name(attribute_1, attribute_2, attribute_3, ...)

Conventions:

  • Primary Key: Underlined or marked with PK
  • Foreign Key: Marked with FK, often with arrow to referenced table
  • Composite Key: Multiple underlined attributes
  • Naming: Use snake_case to align with PostgreSQL conventions

Example:

employee(employee_id, full_name, department_id, email)
         ___________              _____________
              PK                   FK -> department

Reading Relational Notation

Given this notation:

department(department_id, department_name, location)
           _____________

employee(employee_id, full_name, department_id, hire_date)
         ___________             _____________
                                  FK -> department

We understand:

  • Two tables exist: department and employee
  • Each department has an ID (PK), name, and location
  • Each employee has an ID (PK), name, department reference (FK), and hire date
  • Employees link to departments via department_id

Why Use Relational Notation?

Benefits:

  • Quick to write and read
  • Easy to iterate on design
  • Technology agnostic
  • Good for whiteboard discussions
  • Natural precursor to ERD creation

You can sketch a database design in minutes without opening any tools.

Normalization Activity: Dunder Mifflin

Our Dataset: The Office

We have employee data from Dunder Mifflin Paper Company:

employee_id,full_name,department,email,hire_date,salary_usd,
is_manager,performance_rating,years_experience,commission_rate,last_login
1,Michael Scott,Management,michael.scott@dundermifflin.com,2005-03-24,
75000.00,true,3.2,15,,2026-01-15 09:12:00
2,Dwight Schrute,Sales,dwight.schrute@dundermifflin.com,2006-04-12,
62000.00,false,4.8,12,0.08,2026-01-16 08:01:00
...

Let us normalize this data step by step.

Step 1: Examine the Flat File

employee_id full_name department email hire_date salary_usd is_manager performance_rating years_experience commission_rate last_login
1 Michael Scott Management michael.scott@… 2005-03-24 75000.00 true 3.2 15 2026-01-15
2 Dwight Schrute Sales dwight.schrute@… 2006-04-12 62000.00 false 4.8 12 0.08 2026-01-16
3 Pam Beesly Reception pam.beesly@… 2007-07-02 42000.00 false 3.9 8
4 Jim Halpert Sales jim.halpert@… 2005-10-05 61000.00 false 4.1 10 0.07 2026-01-16
5 Angela Martin Accounting angela.martin@… 2006-08-15 52000.00 false 4.5 11 2026-01-15

Questions to ask:

  • What are the entities here?
  • What determines what?
  • Is there redundancy?

Step 2: Check 1NF

Is this data in First Normal Form?

Checklist:

  • Each cell has one value? Yes
  • No repeating groups? Yes
  • All rows unique? Yes (employee_id is unique)

This data is already in 1NF. Good start.

Step 3: Identify Dependencies

What does employee_id determine?

employee_id -> full_name
employee_id -> department
employee_id -> email
employee_id -> hire_date
employee_id -> salary_usd
employee_id -> is_manager
employee_id -> performance_rating
employee_id -> years_experience
employee_id -> commission_rate
employee_id -> last_login

Are there other dependencies?

department -> ??? (Does department determine anything else?)

Think about it: does knowing the department tell us anything specific?

Step 4: Check 2NF

Is there a composite key? No, employee_id alone is the primary key.

With a single-column primary key, 2NF is automatically satisfied.

We are in 2NF.

Step 5: Check 3NF and Find Issues

Looking for transitive dependencies…

The department column contains the department name directly. What if departments have additional attributes?

Consider:

  • Department -> Department Manager
  • Department -> Cost Center
  • Department -> Floor Location

If we wanted to add these, we would repeat them for every employee in that department.

Problem Identified: Department should be its own entity.

Step 6: Decompose to 3NF

Let us create a separate department table:

Relational Notation:

department(department_id, department_name)
           _____________

employee(employee_id, full_name, department_id, email, hire_date,
         ___________             _____________
         salary_usd, is_manager, performance_rating,
         years_experience, commission_rate, last_login)

         FK: department_id -> department(department_id)

Step 7: Consider Additional Decomposition

Should we split further?

Sales-specific attributes:

  • commission_rate only applies to Sales employees
  • NULL for everyone else

Options:

  1. Keep it simple (NULLs are okay)
  2. Create a sales_employee subtype table

For this dataset, option 1 is reasonable. The NULL rate is low.

Step 8: Consider Login Tracking

The last_login column represents temporal data. What if we want login history?

Current: Single timestamp, overwrites each time

Better design for history:

login_history(login_id, employee_id, login_timestamp)
              ________  ___________
                            FK -> employee

employee(employee_id, ...)  -- Remove last_login

But for the current requirement (just last login), the original design works.

Final Normalized Design

department(department_id, department_name)
           _____________

employee(employee_id, full_name, department_id, email, hire_date,
         ___________             _____________
         salary_usd, is_manager, performance_rating,
         years_experience, commission_rate, last_login)

FK: employee.department_id -> department.department_id

From Design to Implementation

We have completed the logical design using relational notation:

department(department_id, department_name)
           _____________

employee(employee_id, full_name, department_id, email, hire_date,
         ___________             _____________
         salary_usd, is_manager, performance_rating,
         years_experience, commission_rate, last_login)

FK: employee.department_id -> department.department_id
NoteComing Soon: Physical Implementation

In an upcoming lecture, we will cover:

  • DDL (Data Definition Language): CREATE TABLE, ALTER TABLE, DROP TABLE
  • Table Constraints: PRIMARY KEY, FOREIGN KEY, UNIQUE, NOT NULL, CHECK
  • Data Types: Choosing appropriate PostgreSQL types
  • Importing Data: Loading CSV files into normalized tables

For now, focus on understanding how to design the logical structure.

Activity: Your Turn

Working in pairs, answer these questions:

  1. What other attributes might Department have in a real company?
  2. Should is_manager be a separate table or role-based system?
  3. How would you model an employee having multiple departments?
  4. What index would you add and why?

Take 5 minutes, then we will discuss.

Entity-Relationship Diagrams

What Is an ERD?

An Entity-Relationship Diagram (ERD) is a visual representation of your database structure.

ERDs show:

  • Entities (tables)
  • Attributes (columns)
  • Relationships (foreign keys)
  • Cardinality (one-to-one, one-to-many, many-to-many)

ERDs are the universal language of database design.

ERD Components

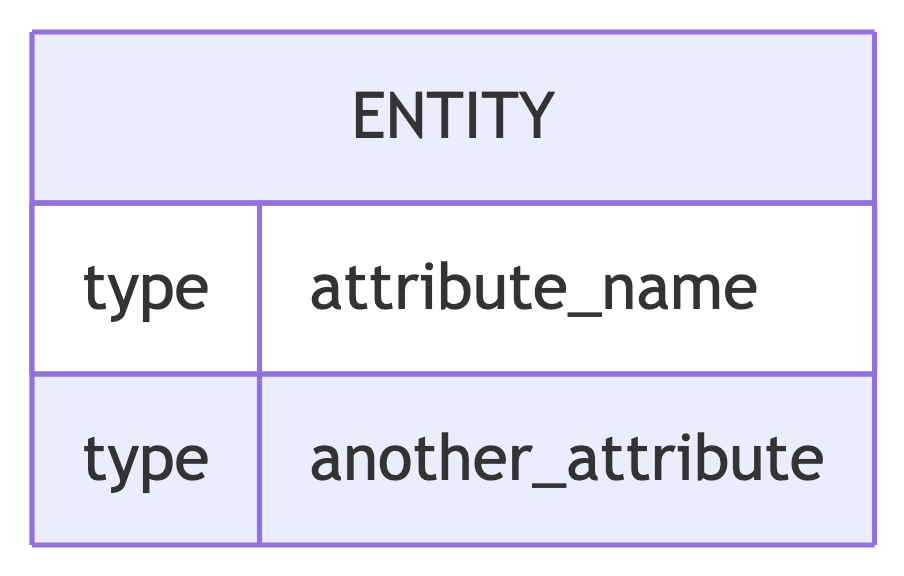

Rectangles represent tables. The entity name appears at the top.

Listed inside the entity box with their data types.

Lines connecting entities show how they relate. The line style indicates cardinality.

  • || One (mandatory)
  • |o Zero or one (optional)
  • }| Many (at least one)
  • }o Zero or many

Crow’s Foot Notation

The most common ERD notation style:

Crow’s Foot Notation Symbols
Symbol Meaning
Line with perpendicular line One (mandatory)
Line with circle Zero (optional)
Line with crow’s foot Many

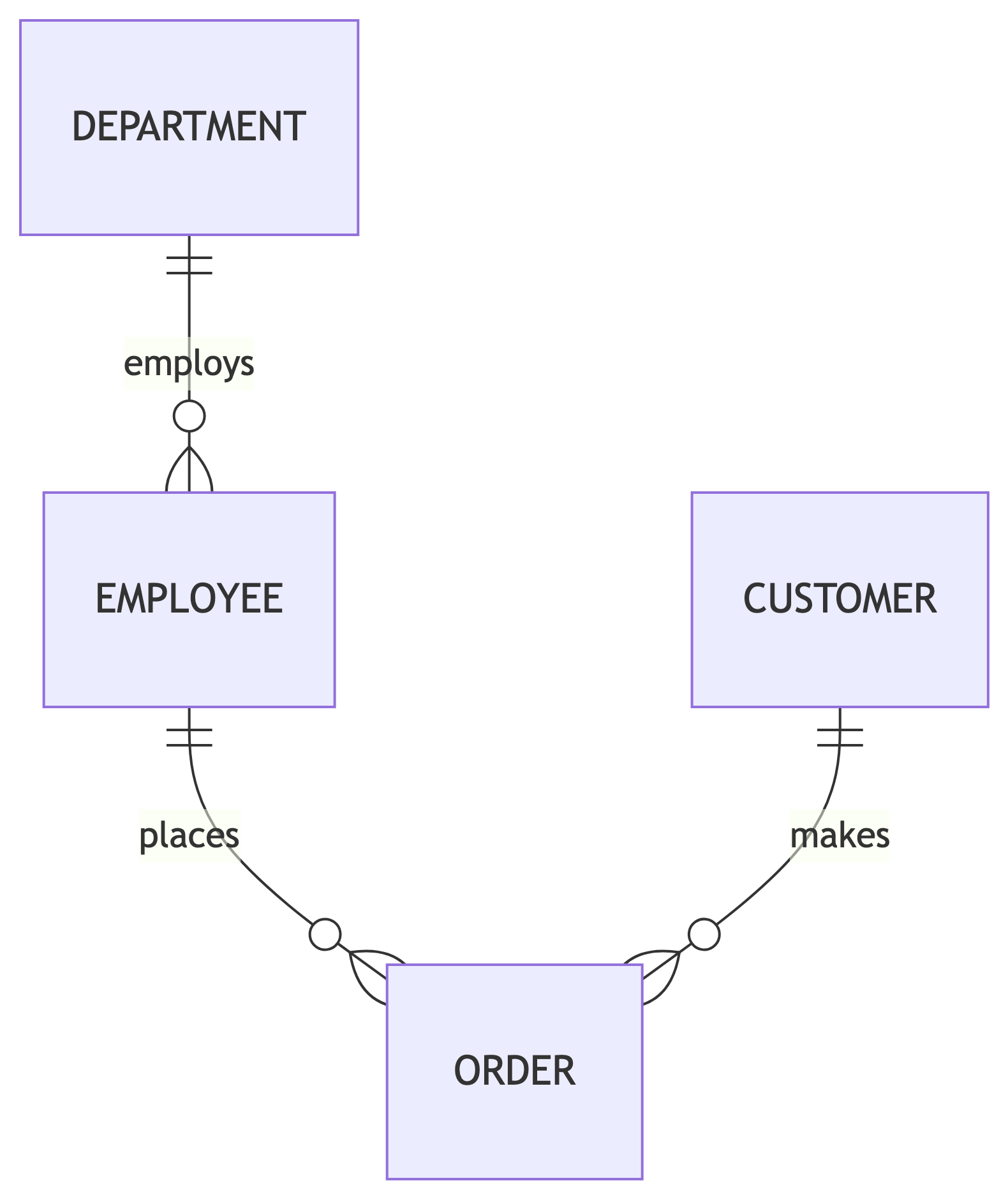

Reading ERD Relationships

Reading this diagram:

  • One DEPARTMENT employs zero or many EMPLOYEEs
  • One EMPLOYEE places zero or many ORDERs
  • One CUSTOMER makes zero or many ORDERs

Creating ERDs with draw.io

draw.io (also known as diagrams.net) is a free, browser-based diagramming tool.

Why draw.io?

  • Free and open source
  • Works in browser (no installation)
  • Has built-in ERD shapes
  • Exports to PNG, PDF, SVG
  • Integrates with Google Drive, GitHub

Access it at: https://app.diagrams.net

draw.io: Getting Started

  1. Go to app.diagrams.net
  2. Choose where to save (local, Google Drive, etc.)
  3. Click “Create New Diagram”
  4. Select “Entity Relationship” template
  1. Find “Entity Relation” shapes in the left panel
  2. Drag an “Entity” shape to the canvas
  3. Double-click to rename
  4. Click the + to add attributes
  1. Hover over an entity until you see connection points
  2. Drag a line from one entity to another
  3. Right-click the line to change the line style
  4. Add relationship labels
  1. Adjust colors and fonts as needed
  2. File > Export as > PNG/PDF/SVG
  3. Include in your documentation

draw.io ERD Example

Creating our Dunder Mifflin schema:

  1. Create “Department” entity with:
    • department_id (PK)
    • department_name
  2. Create “Employee” entity with:
    • employee_id (PK)
    • full_name
    • department_id (FK)
    • email
    • hire_date
    • salary_usd
    • … other attributes
  3. Connect Employee to Department with one-to-many line

Alternative Tools

While we focus on draw.io, other options exist:

Tool Pros Cons
draw.io Free, easy, browser-based Manual relationship lines
Lucidchart Polish, collaboration Paid for full features
dbdiagram.io Code-based syntax Limited free tier
pgModeler PostgreSQL specific Steeper learning curve
MySQL Workbench Reverse engineering MySQL focused

For this course, draw.io is sufficient and recommended.

ERD Best Practices

  1. Consistent naming: Use same conventions throughout
  2. Show cardinality: Always indicate relationship types
  3. Include keys: Mark PK and FK clearly
  4. Logical grouping: Place related entities near each other
  5. Avoid crossing lines: Rearrange to minimize line crossings
  6. Add descriptions: Include relationship verb phrases
  7. Keep it readable: Break into sub-diagrams if too complex

Activity: Create an ERD

Using draw.io, create an ERD for a simplified library system:

Entities:

  • Book (isbn, title, publication_year)
  • Author (author_id, name, birth_year)
  • Member (member_id, name, email, join_date)
  • Loan (loan_id, loan_date, return_date)

Relationships:

  • A book can have multiple authors
  • An author can write multiple books
  • A member can have multiple loans
  • Each loan is for one book

Take 10 minutes, then share your diagrams.

Applying Normalization: Oregon Turtle Conservation 🐢

A Real-World Normalization Challenge

Oregon’s native freshwater turtles need help. The Oregon Conservation and Recreation Fund (OCRF) and Oregon Department of Fish and Wildlife (ODFW) track turtle sightings through a citizen science platform.

The raw sighting data arrives as a denormalized CSV file with issues we need to fix:

  • Repeated submitter information across rows
  • Multiple observations per submission
  • Redundant location data
  • Mixed temporal data (submission time vs. observation time)

This is exactly the kind of messy data you will encounter in practice.

The Conservation Context

Two native species are in decline:

  • Northwestern Pond Turtle (Actinemys marmorata)
  • Western Painted Turtle (Chrysemys picta bellii)

Threatened by two invasive species:

  • Red-eared Slider (Trachemys scripta elegans)
  • Common Snapping Turtle (Chelydra serpentina)

Citizens report sightings via mobile app. ODFW biologists review and intervene when necessary.

The Current Data Structure

The CSV contains denormalized data where a single submission spans multiple rows:

Submission ID First Name Email Latitude Longitude Observation ID Species Behavior Count
101 Jane jane@… 45.123 -122.456 1001 WesternPond Basking 3
101 Jane jane@… 45.123 -122.456 1002 RedEaredSlider Swimming 1
102 Bob bob@… 44.987 -123.111 1003 WesternPainted Basking 2

Notice how Jane’s submission information repeats because she observed two species.

Identifying Normalization Issues

What problems do you see?

Submitter information (name, email, phone) repeats for every observation within a submission. Location data also repeats.

If Jane submits a report with 5 species, her contact info appears 5 times.

If Jane changes her email, we must update every row where she appears. Miss one? Data inconsistency.

The flat file conflates three distinct concepts:

  • Submitter (the person reporting)
  • Submission (a single report event)
  • Observation (each species sighted)

Repeated text values that should be normalized:

  • Species names
  • Behavior types
  • Status values (New, Pending, Approved, Rejected)
  • Action taken values

Your Assignment Preview

Your assignment will be to design a normalized schema for this turtle sighting data:

  1. Analyze the denormalized CSV file
  2. Identify all functional dependencies
  3. Create a complete Entity-Relationship Diagram normalized to 3NF
  4. Document your design decisions and assumptions

This is an ERD-only assignment. Focus on the logical design; we will implement the physical schema in a later assignment.

Putting It All Together

The Complete Workflow

This is the professional database design workflow. We cover the first four steps in this lecture and the final two in the upcoming DDL and data import lecture.

From Spreadsheet to Schema

Starting point: Messy spreadsheet from business users

  1. Understand the data: What entities exist? What are the relationships?
  2. Identify dependencies: What determines what?
  3. Apply normal forms: Decompose until 3NF/BCNF
  4. Document in relational notation: Quick text representation
  5. Create ERD: Visual/logical documentation
  6. Write SQL DDL: CREATE TABLE statements (upcoming lecture)
  7. Migrate data: Load and transform from source (upcoming lecture)
  8. Validate: Test queries, check constraints

Common Pitfalls to Avoid

  • Normalizing too early (understand data first)
  • Over-normalizing (not everything needs 5 tables)
  • Ignoring performance (sometimes denormalization is okay)
  • Forgetting NULL handling (design for missing data)
  • Skipping documentation (future you will thank present you)
  • Not considering growth (will this scale?)

Key Takeaways

  1. Normalization prevents anomalies - Update, insert, delete problems go away
  2. 3NF is usually sufficient - Do not over-engineer
  3. Relational notation is fast - Sketch designs quickly
  4. ERDs communicate designs - Universal visual language
  5. Practice makes perfect - The more you normalize, the better you get

Looking Ahead

Next steps:

  • Complete the Oregon Turtle Conservation ERD assignment (Assignment 4)

Questions?

References

References

  1. Codd, E. F. (1970). A Relational Model of Data for Large Shared Data Banks. Communications of the ACM, 13(6), 377-387.

  2. Kent, W. (1983). A Simple Guide to Five Normal Forms in Relational Database Theory. Communications of the ACM, 26(2), 120-125.

  3. Silberschatz, A., Korth, H., & Sudarshan, S. (2019). Database System Concepts (7th ed.). McGraw-Hill.

  4. Date, C. J. (2003). An Introduction to Database Systems (8th ed.). Addison-Wesley.

  5. Oregon Department of Fish and Wildlife. (n.d.). Oregon Turtle Conservation. https://www.dfw.state.or.us/wildlife/turtle/

  6. diagrams.net. (n.d.). Free Online Diagram Software. https://www.diagrams.net
