Lecture 05-3: Pet Clinic Assignment

DATA 503: Fundamentals of Data Engineering

Lucas P. Cordova, Ph.D.
lpcordova@willamette.edu

Willamette University

February 9, 2026

Overview 📖

Process

You have seen the entire pipeline in action with the music catalog. Now you will do it yourself, start to finish, with a new dataset. No scaffolding. No guided steps. Just you, a messy CSV, and everything you have learned.

The Assignment 📝

Overview

A small veterinary clinic needs a database to track their patients, owners, and visits. They currently have everything in a single spreadsheet. It has problems.

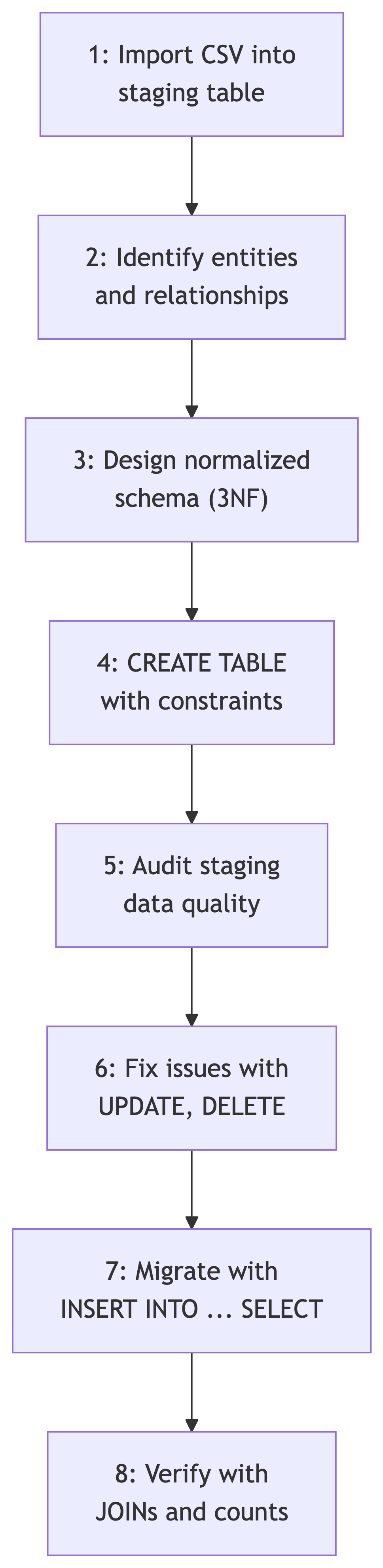

Your job:

  1. Import the raw CSV into a staging table
  2. Design a normalized schema
  3. Build the tables with proper constraints
  4. Audit the data for quality issues
  5. Fix the issues
  6. Migrate the data into your normalized tables
  7. Verify everything works
  8. Document your process in a Data Design Journal

The Raw Data

Here is the spreadsheet the clinic gave you:

owner_name owner_email owner_phone pet_name species breed visit_date reason cost
Maria Lopez maria@email.com 503-555-0101 Luna Dog Labrador 2026-01-15 Checkup 75.00
Maria Lopez maria@email.com 503-555-0101 Luna Dog Labrador 2026-02-01 Vaccination 120.00
Maria Lopez MARIA@EMAIL.COM 503-555-0101 Whiskers Cat Siamese 2026-01-20 Dental 250.00
James Park james@email.com 541-555-0202 Buddy dog Golden Retriever 2026-01-18 Surgery 800.00
James Park james@email.com Buddy dog Golden Retriever 2026-02-05 Follow-up 50.00
Sarah Chen sarah@email.com 971-555-0303 Max Dog Poodle 2026-01-22 Checkup 75.00
Sarah Chen sarah@email.com 971-555-0303 Bella cat Persian 2026-01-25 Vaccination 95.00
James Park james@email.com 541-555-0202 Rocky Reptile Bearded Dragon 2026-02-03 Checkup 65.00

Take a minute. Count the problems. There are more than you think.

The Pipeline

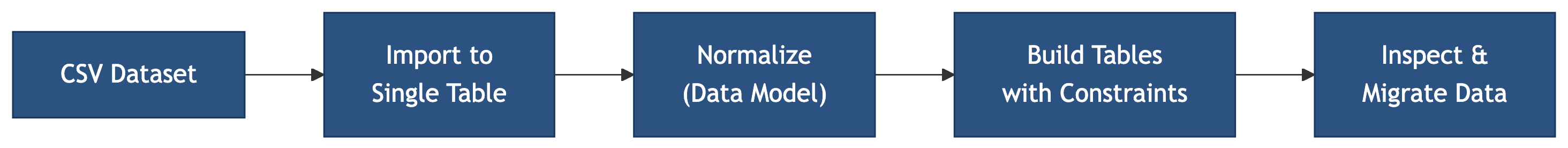

You will follow the same pipeline we used for the music catalog:

Every step requires decisions. Document those decisions. That is where the journal comes in.

The Data Design Journal 📝

What Is It?

A Data Design Journal is a written record of your design process. It captures not just what you built, but why you built it that way. In professional data engineering, this is called documentation. In this course, it is called a requirement.

You did a brief version of this in your normalization assignment. This time, it is the full version.

Why It Matters

Two engineers can look at the same data and design different schemas. Neither is necessarily wrong. The journal explains your reasoning so that someone else (or future you) can understand the trade-offs you considered.

It also forces you to think before you type. The number of database problems caused by typing before thinking is nonzero.

Journal Sections

Your journal should include these parts:

Section What Goes Here
Problem Statement What are you building and why?
Assumptions What did you assume about the data and the domain?
Normalization Decisions How did you identify entities? What normal form and why?
Schema Design Table definitions, keys, constraints, and the reasoning behind each
Migration Steps How you audited, fixed, and migrated the data
Verification How you confirmed the migration was correct
Reflection What you learned, what you would do differently

Problem Statement

A brief description of the scenario and the goal. One paragraph. Not a novel. Think of it as explaining the project to a colleague who just sat down next to you.

Assumptions

Things you assumed about the domain that influenced your design. For example:

  • Can a pet have multiple owners?
  • Can two owners share the same email?
  • What species does the clinic treat?
  • Can a visit have zero cost (pro bono)?
  • What happens to pet records when an owner leaves?

These are not trick questions. They are design decisions that affect your schema.

Normalization Decisions

How you went from one flat table to multiple related tables. Identify:

  • The entities you found
  • The relationships between them (one-to-many, many-to-many)
  • What normal form you targeted and why
  • Any denormalization decisions and their justification

Schema Design

The actual CREATE TABLE statements with annotations explaining:

  • Why you chose natural vs surrogate keys
  • Which columns are NOT NULL and why
  • What CHECK constraints you added and what they prevent
  • Your ON DELETE behavior choices
  • Which indexes you created and what queries they support

Migration Steps

A walkthrough of your audit, fix, and migration process:

  • What quality issues you found
  • How you fixed each one
  • The INSERT INTO … SELECT statements you used
  • Whether you used transactions (you should)

Verification

How you confirmed the migration worked:

  • Row count comparisons
  • JOIN queries that reconstruct the original data
  • Constraint validation (any violations?)
  • Edge case checks

Reflection

The honest part. What went well? What surprised you? What would you do differently next time? This section is graded on thoughtfulness, not on perfection. Everyone makes mistakes. The ones who learn from them are the ones who write them down.

Deliverables 📦

What to Submit

Two things:

  1. SQL file – All your SQL statements, in order, from staging table creation through verification. It should be runnable top to bottom on a clean database.

  2. Data Design Journal – A written document (Markdown or PDF) covering all seven sections described above.

Grading Priorities

The journal and the SQL carry equal weight. A technically correct migration with no documentation is incomplete. A beautifully written journal with broken SQL is also incomplete. You need both.

What I am looking for:

  • A working pipeline (import through verification)
  • Appropriate constraints (not too few, not too many)
  • Data quality issues identified and fixed
  • Transactions used for the migration
  • Clear reasoning in the journal
  • Honest reflection

References 📚

Sources

  1. DeBarros, A. (2022). Practical SQL: A Beginner’s Guide to Storytelling with Data (2nd ed.). No Starch Press. Chapters 7 and 9.

  2. PostgreSQL Documentation. “CREATE TABLE.” https://www.postgresql.org/docs/current/sql-createtable.html

  3. PostgreSQL Documentation. “Constraints.” https://www.postgresql.org/docs/current/ddl-constraints.html
