Lecture 07-1: Web Data Pipelines

DATA 503: Fundamentals of Data Engineering

Author
Affiliation

Lucas P. Cordova, Ph.D.

Willamette University

Published

February 25, 2026

Abstract

This lecture covers building data engineering pipelines from web data. We start with web scraping using the Web Scraper Chrome extension, scrape vinyl record data from Discogs, then deploy a full pipeline using Docker on Railway: database setup, data ingestion, transformation, dashboards, API bridge, and developer portal.

Part 1: Web Scraping with Web Scraper

What is Web Scraping?

Web scraping is the process of automatically extracting data from websites. Instead of manually copying and pasting, we write (or configure) tools to do it for us.

Why? Because life is too short to copy 10,000 rows by hand. Your fingers will thank you.

Use Cases for Web Scraping

  • Price monitoring (e-commerce, travel)
  • Research data collection (academic datasets)
  • Job posting aggregation
  • Social media analysis
  • Building datasets that do not exist as downloads

The Ethics and Legality Disclaimer

Before you go scraping the entire internet:

  • Check the site’s robots.txt file (e.g., https://example.com/robots.txt)
  • Respect rate limits – do not hammer servers
  • Check Terms of Service
  • Do not scrape personal/private data
  • When in doubt, ask. Or just do not do it.

We are responsible data engineers, not chaos agents.

Web Scraper Chrome Extension

What is Web Scraper?

Web Scraper is a free Chrome/Firefox extension that lets you scrape websites without writing code. It uses a point-and-click interface to define what data to extract.

Think of it as “I can not code a spider, but I can click on things.”

Install it from:

After installation, restart your browser (or just use new tabs).

Accessing Web Scraper

  1. Open Chrome DevTools (F12 or Cmd+Opt+I on Mac)
  2. Look for the Web Scraper tab in DevTools
  3. If you do not see it, you may need to click the >> arrows to find it

That is where all the magic happens.

Key Terminology: Sitemap

A Sitemap is your scraping project. It defines:

  • Start URL(s) – where the scraping begins
  • Selectors – what data to extract and how to navigate
  • The overall structure of your scrape

Think of it like a treasure map, except the treasure is data and X marks the CSS selector.

Key Terminology: Selectors

Selectors are the building blocks of your sitemap. Web Scraper has three types:

Category Purpose Examples
Data extraction Pull data from elements Text, Link, Image, Table, HTML
Link navigation Follow links to other pages Link selector
Element grouping Group related data together Element selector, Element click

Key Terminology: Selector Tree

Selectors are organized in a tree structure. The scraper executes them top-down:

Parent selectors define scope. Child selectors extract data within that scope.

Key Terminology: Multiple Records

When a selector has Multiple checked, it means:

  • “There are many of these on the page”
  • The scraper will iterate through all matching elements
  • Each match becomes a separate data row

For example: a product listing page has 25 items. The Element selector with Multiple checked will find all 25.

The Select Tool

Web Scraper’s point-and-click tool:

  1. Click Select in the selector creation interface
  2. Yellow highlight = element that will be selected on click
  3. Red highlight = already selected element
  4. Click again to deselect

Keyboard shortcuts (after clicking Select):

Key Action
P Expand to parent element
C Narrow to child element
S Select without clicking (for dynamic elements)
Shift Select multiple element groups

Element Preview and Data Preview

Always use these before running a scrape:

  • Element Preview – highlights which elements on the page match your selector (visual check)
  • Data Preview – shows the actual data that will be extracted (sanity check)

If the preview looks wrong, the scrape will be wrong. Trust the preview.

Pagination with Range URLs

Instead of clicking “Next” 100 times, use range URLs:

Pattern Generates
https://example.com/page/[1-3] /page/1, /page/2, /page/3
https://example.com/page/[001-100] /page/001, /page/002, … (zero-padded)
https://example.com/page/[0-100:10] /page/0, /page/10, /page/20, …

This is how we handle multi-page scrapes without link selectors for pagination.

Demo: Scraping Discogs

Our Target: Discogs Most Collected Releases

We are going to scrape the Most Collected Releases from Discogs – the world’s largest music database.

We want: artist name, album title, and then we will follow the link to each album’s detail page to grab the average rating and number of ratings. This is a two-level scrape.

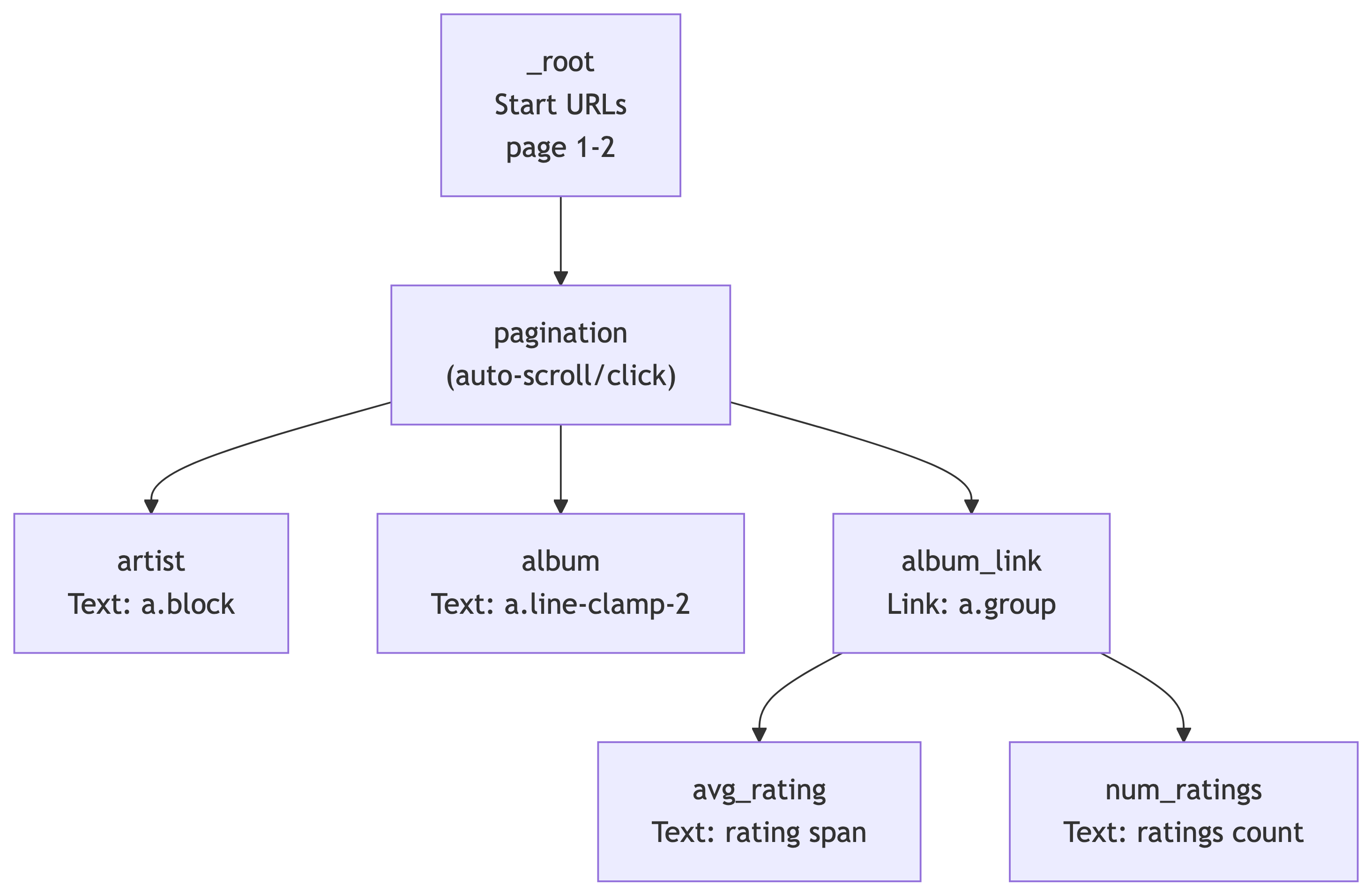

The Sitemap Structure

Our scrape has two levels: the search results page and each album’s detail page:

The pagination selector handles navigating through search result pages. Under it, we extract text (artist, album) and follow links (album_link) to detail pages where we grab ratings.

Step 1: Create a New Sitemap

  1. Open DevTools (F12 or Cmd+Opt+I) and go to the Web Scraper tab
  2. Click Create new sitemap > Create Sitemap
  3. Sitemap name: discogs5
  4. Start URL: https://www.discogs.com/search?sort=have%2Cdesc&type=release&page=[1-2]

We use [1-2] to scrape the first 2 pages (~50 results). You can increase this later, but start small when testing.

Step 2: Add the Pagination Selector

This handles scrolling or clicking through search results on each page:

  1. Make sure you are at the **_root** level of selectors
  2. Click Add new selector
  3. ID: pagination
  4. Type: Pagination
  5. Selector: Click Select, then find and click one of the page navigation arrows/buttons at the bottom of the search results. The CSS selector should resolve to something like .hidden .cursor-pointer.justify-center span
  6. Pagination type: Auto (the scraper will keep clicking “next” until there are no more pages)
  7. Click Save selector

Why Pagination instead of Element? The Pagination selector both groups the repeating data on the page AND handles navigating to subsequent pages. It is doing double duty.

Step 3: Add the Artist Text Selector

Navigate into the pagination selector (click on it), then:

  1. Click Add new selector
  2. ID: artist
  3. Type: Text
  4. Selector: Click Select, then click an artist name in the search results. The CSS selector should be a.block
  5. Leave Multiple unchecked (one artist per result card)
  6. Click Save selector

Use Data Preview to verify it is grabbing artist names correctly.

Step 4: Add the Album Text Selector

Still inside the pagination selector:

  1. Click Add new selector
  2. ID: album
  3. Type: Text
  4. Selector: Click Select, then click an album title. The CSS selector should be a.line-clamp-2
  5. Leave Multiple unchecked
  6. Click Save selector

Data Preview should now show album titles alongside artists.

Step 6: Add Detail Page Selectors

Navigate into the album_link selector. Now we define what to extract from each album’s detail page.

Average Rating:

  1. Click Add new selector
  2. ID: avg_rating
  3. Type: Text
  4. Selector: Navigate to any album detail page manually to build this selector. Find the average rating value. The CSS selector should be .section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)
  5. Click Save selector

Number of Ratings:

  1. Click Add new selector
  2. ID: num_ratings
  3. Type: Text
  4. Selector: Find the total number of ratings on the detail page. The CSS selector should be #release-stats li:nth-of-type(4) a
  5. Click Save selector

The Complete Selector Tree

Your sitemap should now look like this:

Selector ID Type Parent CSS Selector
pagination Pagination _root .hidden .cursor-pointer.justify-center span
artist Text pagination a.block
album Text pagination a.line-clamp-2
album_link Link pagination a.group
avg_rating Text album_link .section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)
num_ratings Text album_link #release-stats li:nth-of-type(4) a

Importing the Sitemap Directly

If you prefer to skip building it manually, you can import the complete sitemap JSON:

  1. Go to the Web Scraper tab in DevTools
  2. Click Create new sitemap > Import Sitemap
  3. Paste this JSON and click Import:
{
  "_id": "discogs5",
  "startUrl": [
    "https://www.discogs.com/search?sort=have%2Cdesc&type=release&page=[1-2]"
  ],
  "selectors": [
    {
      "id": "pagination",
      "paginationType": "auto",
      "parentSelectors": ["_root", "", "pagination"],
      "selector": ".hidden .cursor-pointer.justify-center span",
      "type": "SelectorPagination"
    },
    {
      "id": "artist",
      "multiple": false,
      "parentSelectors": ["pagination"],
      "selector": "a.block",
      "type": "SelectorText",
      "version": 2
    },
    {
      "id": "album",
      "multiple": false,
      "parentSelectors": ["pagination"],
      "selector": "a.line-clamp-2",
      "type": "SelectorText",
      "version": 2
    },
    {
      "id": "album_link",
      "linkType": "linkFromHref",
      "multiple": true,
      "parentSelectors": ["pagination"],
      "selector": "a.group",
      "type": "SelectorLink",
      "version": 2
    },
    {
      "id": "avg_rating",
      "multiple": false,
      "parentSelectors": ["album_link"],
      "selector": ".section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)",
      "type": "SelectorText",
      "version": 2
    },
    {
      "id": "num_ratings",
      "multiple": false,
      "parentSelectors": ["album_link"],
      "selector": "#release-stats li:nth-of-type(4) a",
      "type": "SelectorText",
      "version": 2
    }
  ]
}

Step 7: Preview and Validate

Before running the full scrape, always check:

  1. Click Element preview on each selector – are the correct elements highlighted?
  2. Click Data preview on artist and album – do they show real artist/album names?
  3. Navigate to a detail page manually and test avg_rating and num_ratings element previews there

If the preview looks wrong, the scrape will be wrong. Trust the preview.

Step 8: Run the Scrape

  1. Click Scrape in the Sitemap menu
  2. Set Request interval: 2000ms (be polite to Discogs servers)
  3. Set Page load delay: 2000ms
  4. Click Start scraping

A popup window will open and start loading pages. It will visit each search results page, extract artist/album names, then follow each album link to grab ratings from the detail pages. Do not close the popup. Go get coffee – this is a two-level scrape so it takes longer than a single-page scrape.

Step 9: Export the Data

Once scraping is complete:

  1. Click Browse to preview scraped data
  2. Click Export data as CSV
  3. Save the file – this is your raw dataset

Congratulations, you just built a two-level scraping pipeline with zero code. You scraped search results AND followed links to detail pages for extra data. Your future self who has to write Python scrapers will be jealous.

What We Scraped

Field Source Description
artist Search results page Artist or band name
album Search results page Album/release title
album_link Search results page URL to the album detail page
avg_rating Album detail page Average user rating (e.g., 4.21)
num_ratings Album detail page Total number of user ratings

This is our raw data. In a real pipeline, we would clean, transform, and load this into a database. Which is exactly what we are about to learn.

In-Class Exercise: Top Vinyl of the 2010s

Your Turn: Scrape the Top 200 Vinyl Releases of 2010-2020

Work individually or with a neighbor. You are going to build your own sitemap from scratch using what we just learned.

The Use Case: Discogs tracks which releases are the most collected by users worldwide. We want to find the most collected vinyl releases from the 2010s decade and pull rating data from each album’s detail page.

The Search URL

Start with this base URL in your browser:

https://www.discogs.com/search?sort=have%2Cdesc&type=release&year1=2010&year2=2020&format_exact=Vinyl

This applies the following filters:

Filter Value
Sort Most Collected (have, descending)
Type Release
Year Range 2010 to 2020
Format Vinyl

Open this URL in Chrome and verify you see vinyl releases sorted by collector count.

Your Task

Build a Web Scraper sitemap that:

  1. Paginates through the first 4 pages of results (~100 releases)
  2. Extracts the artist name and album title from each search result
  3. Follows the link to each album’s detail page
  4. Extracts the average rating and number of ratings from the detail page

Bonus fields (if you finish early):

  • Year and format info from the search results page
  • “Have” count and “Want” count from the detail page

Hints

  • Your sitemap structure should look very similar to the discogs5 demo we just built
  • Use a Pagination selector at the root level
  • Use a Link selector to navigate to detail pages
  • Use the Select tool and Data Preview to verify each selector before moving on
  • If a CSS selector does not work, try using P (parent) or C (child) keys while the Select tool is active

Expected Output

When you export to CSV, each row should have:

Column Example Value
artist Adele
album 21
album_link https://www.discogs.com/release/…
avg_rating 4.18
num_ratings 1,247

You have 15 minutes. When you are done (or stuck), we will compare sitemaps.

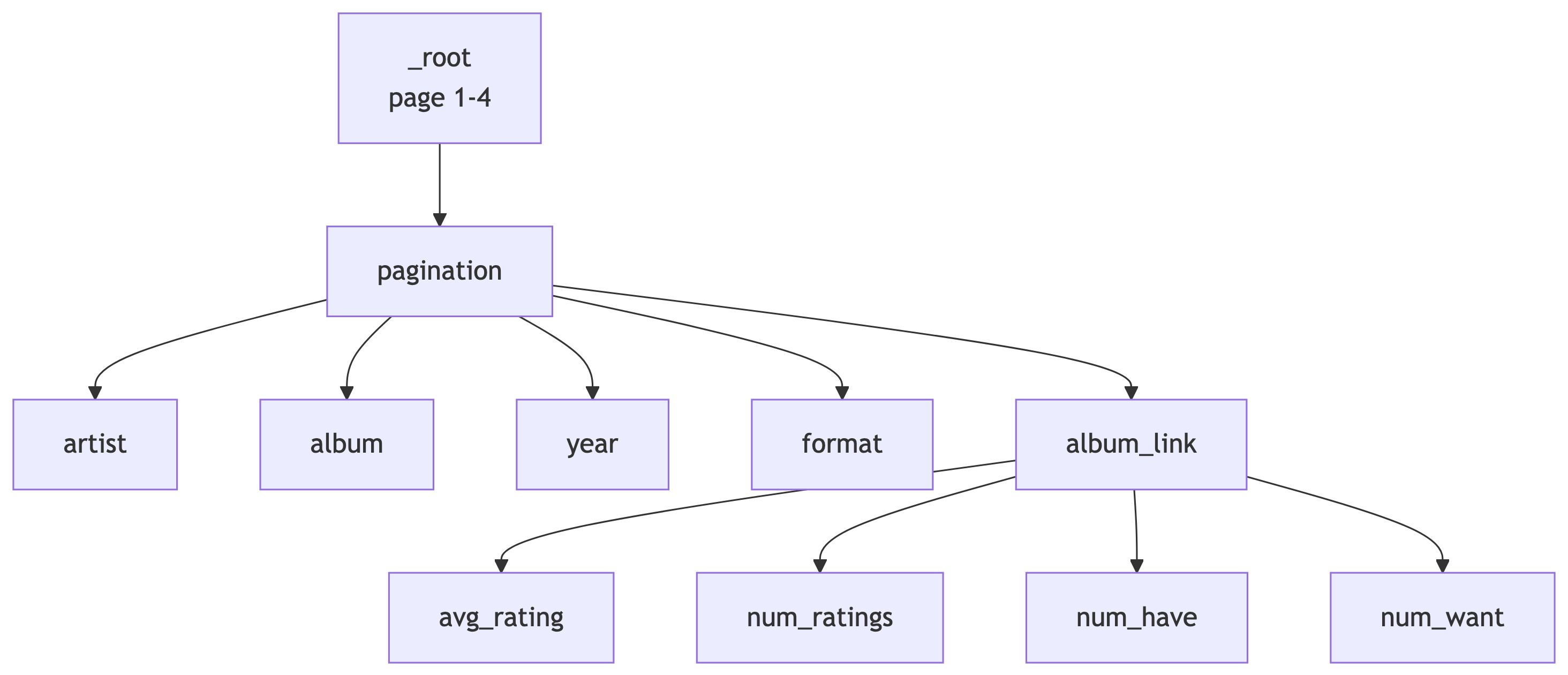

Solution: The Complete Sitemap

Here is a working sitemap for this exercise. You can import it via Create new sitemap > Import Sitemap:

The solution sitemap JSON is available as top100_2010-2020.json on the course site.

Selector ID Type Parent CSS Selector
pagination Pagination _root .hidden .cursor-pointer.justify-center span
artist Text pagination a.block
album Text pagination a.line-clamp-2
year Text pagination span.block.text-xs
format Text pagination p.text-xs.truncate
album_link Link pagination a.group
avg_rating Text album_link .section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)
num_ratings Text album_link #release-stats li:nth-of-type(4) a
num_have Text album_link #release-stats li:nth-of-type(1) a
num_want Text album_link #release-stats li:nth-of-type(2) a

Part 2: Docker and Deployment

What is Docker? (A Refresher)

The Problem Docker Solves

“It works on my machine.” – Every developer, moments before disaster.

Docker packages your application and all its dependencies into a container – a lightweight, portable, isolated environment that runs the same everywhere.

Key Docker Concepts

Concept What It Is Analogy
Image A blueprint/recipe for your container A shipping manifest
Container A running instance of an image The actual shipping container
Registry Where images are stored (Docker Hub) The warehouse
Dockerfile Instructions to build an image The recipe card

Why Docker for Data Pipelines?

  • Reproducibility – same environment everywhere
  • Isolation – services do not interfere with each other
  • Scalability – spin up more containers as needed
  • Deployment – push an image, deploy anywhere
  • Scheduling – run containers on a cron schedule (ingest every 5 min!)

Docker turns “how do I deploy this?” from a week-long saga into a one-liner.

Our Docker Image: lucascordova/web2db

We will use a pre-built Docker image called lucascordova/web2db.

This image:

  • Fetches data from a URL (any API or web endpoint)
  • Stores the raw JSON response in a PostgreSQL table
  • Runs once per execution (designed for cron scheduling)

Environment variables control its behavior – no code changes needed:

Variable Purpose
SITE_URL The URL to fetch data from
DATABASE_URL PostgreSQL connection string
TABLE_NAME Which table to insert into
DEBUG Enable verbose logging

Part 3: Pipeline Architecture

The Big Picture

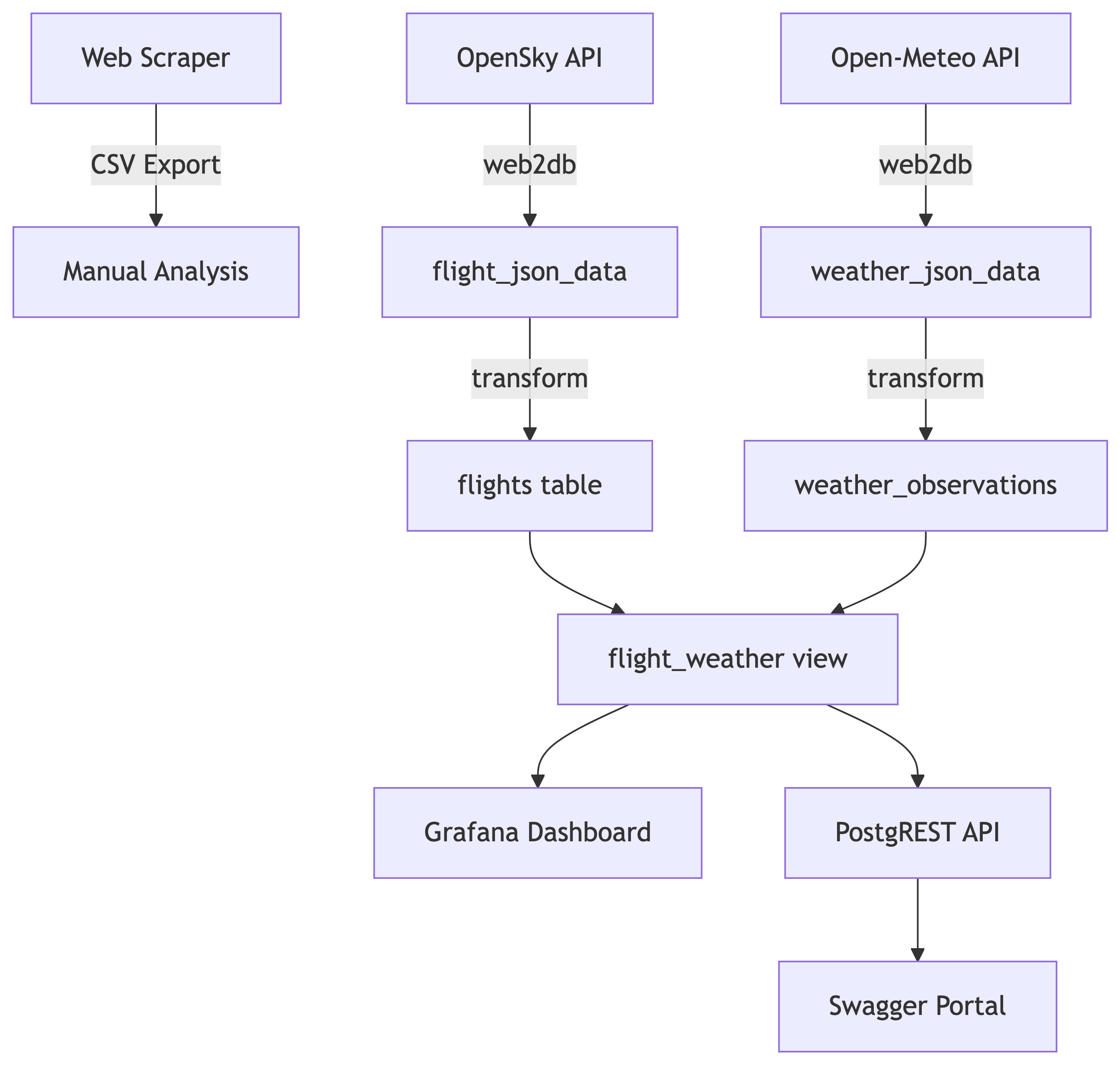

Our Pipeline

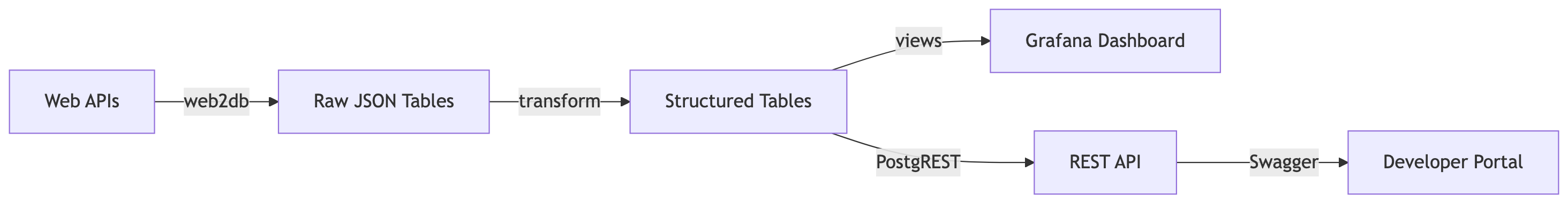

We are building an end-to-end data engineering pipeline:

Seven services, one Railway project, zero hand-waving. Let us build each one.

Stage 1: Database Service Setup

Overview

The Central Knowledge Repository

In this pipeline, Postgres is the brain. Everything flows into it and everything reads from it.

It serves a dual role:

  1. Raw Data Storage – capturing unstructured API responses as JSON blobs
  2. Structured Relational Modeling – clean, normalized tables ready for querying

We will deploy it on Railway and connect using Beekeeper Studio.

Prerequisites

What You Need Before Starting

Beekeeper Studio is an open-source desktop SQL client. It is like pgAdmin but prettier and less likely to make you cry.

Setting Up Postgres on Railway

Step 1: Create a New Railway Project

  1. Log in at railway.app
  2. Click “New Project”
  3. Select “Blank Project”
  4. Name your project (e.g., discogs-pipeline)

Step 2: Add a Postgres Database

  1. In your project dashboard, click “New” to add a service
  2. Choose “Database”, then click “PostgreSQL”
  3. Railway will provision your database automatically

This database becomes the shared backend for all services in your pipeline.

Step 3: Get Your Connection URL

  1. Click into the Postgres service
  2. Open the Variables tab
  3. Copy the DATABASE_PUBLIC_URL

It looks something like:

postgresql://postgres:<password>@<server>.proxy.rlwy.net:20848/railway

This is your golden ticket. Guard it like a secret.

Connecting with Beekeeper Studio

Step 4: Connect from Beekeeper

  1. Open Beekeeper Studio and click “New Connection”
  2. Choose PostgreSQL
  3. Click “Import from URL”
  4. Paste the DATABASE_PUBLIC_URL
  5. Click “Connect”

You should see an empty database. That is expected – your ingestion services will fill it up shortly.

Creating Raw Storage Tables

Step 5: Create Tables for Raw JSON

Before ingestion can begin, we need tables to hold the raw API responses. These are append-only logs: full JSON payloads with timestamps.

CREATE TABLE flight_json_data (
    id SERIAL PRIMARY KEY,
    raw_json JSONB NOT NULL,
    timestamptz TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

CREATE TABLE weather_json_data (
    id SERIAL PRIMARY KEY,
    raw_json JSONB NOT NULL,
    timestamptz TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

Paste this SQL into Beekeeper Studio and execute it.

Why JSONB?

  • JSONB stores JSON in a binary format – faster to query than JSON
  • Supports indexing, containment operators (@>), and path queries (->, ->>)
  • Perfect for storing raw API responses where the schema might vary

We store the raw data first, ask questions later. This is the ELT pattern (Extract, Load, Transform) rather than ETL.

Stage 2: Data Ingestion with web2db

Flight Data Ingestion

Overview

The web2db service fetches data from a URL and stores the JSON response in Postgres. We will deploy it as a Docker container on Railway with a cron schedule.

First up: flight data from the OpenSky Network API.

Understanding the API URL

https://opensky-network.org/api/states/all?lamin=45.08&lomin=-123.50&lamax=45.88&lomax=-122.00
Parameter Value Meaning
lamin 45.08 Latitude minimum
lamax 45.88 Latitude maximum
lomin -123.50 Longitude minimum
lomax -122.00 Longitude maximum

This bounding box covers the Portland metropolitan area and surrounding airspace. We are basically watching planes fly over our heads. Legally.

Deploying the Flight Ingestion Service

  1. In your Railway project, click “New” > “Deploy from Docker Image”
  2. Enter the image name: lucascordova/web2db
  3. Click Deploy

Configure Environment Variables

In the Variables tab, add:

Key Value
SITE_URL https://opensky-network.org/api/states/all?lamin=45.08&lomin=-123.50&lamax=45.88&lomax=-122.00
DATABASE_URL ${{Postgres.DATABASE_PUBLIC_URL}}
TABLE_NAME flight_json_data
DEBUG TRUE

Use Railway’s variable picker to reference the Postgres service directly for DATABASE_URL.

Set Up Cron Scheduling

  1. Go to the Settings tab
  2. Scroll to Triggers > click “New Trigger”
  3. Choose Cron and enter: */5 * * * *

This runs the service every 5 minutes.

Cron format: minute hour day month weekday

*/5 = “every 5 minutes”

Bookmark Crontab Guru – it will save your life when writing cron expressions.

Verify the Data

After a few minutes, check in Beekeeper Studio:

SELECT * FROM flight_json_data
ORDER BY timestamptz DESC
LIMIT 10;

If you see rows with timestamps and JSON blobs, you are golden.

Troubleshooting:

  • Check Deployments tab for successful completion
  • Check Logs tab for debug output
  • Verify SITE_URL and DATABASE_URL for typos

Weather Data Ingestion

Overview

Same concept, different API. We are pulling weather data for Portland from Open-Meteo.

The Weather API URL

https://api.open-meteo.com/v1/forecast?latitude=45.52&longitude=-122.68&current=temperature_2m,wind_speed_10m,weathercode
Parameter Value Meaning
latitude 45.52 Downtown Portland
longitude -122.68 Downtown Portland
current temperature, wind, weathercode Current conditions

Deploy Weather Ingestion

Same steps as flights:

  1. “New” > “Deploy from Docker Image” > lucascordova/web2db
  2. Add environment variables:
Key Value
SITE_URL https://api.open-meteo.com/v1/forecast?latitude=45.52&longitude=-122.68&current=temperature_2m,wind_speed_10m,weathercode
DATABASE_URL ${{Postgres.DATABASE_PUBLIC_URL}}
TABLE_NAME weather_json_data
DEBUG TRUE
  1. Set cron trigger: */5 * * * *

Verify Weather Data

SELECT * FROM weather_json_data
ORDER BY timestamptz DESC
LIMIT 10;

You now have two data streams flowing into your database. You are officially a data engineer. Put it on your resume.

Stage 3: Data Transformation

Overview

From Raw to Structured

Raw JSON is great for storage but terrible for analysis. The transformation service:

  1. Reads raw JSON from the ingestion tables
  2. Extracts meaningful fields using PostgreSQL JSON functions
  3. Inserts structured rows into normalized tables
  4. Deletes processed raw data

This is the “T” in ETL (or the “T” in ELT, depending on your religion).

Understanding the JSON

Inspect Before You Transform

Always look at what you are working with:

SELECT raw_json
FROM flight_json_data
ORDER BY timestamptz DESC
LIMIT 1;
SELECT raw_json
FROM weather_json_data
ORDER BY timestamptz DESC
LIMIT 1;

OpenSky returns an array of arrays. Open-Meteo returns a nested object. Different APIs, different headaches.

Designing the Physical Schema

Structured Target Tables

CREATE TABLE flights (
    id SERIAL PRIMARY KEY,
    icao24 VARCHAR(10) NOT NULL,
    callsign VARCHAR(10),
    country VARCHAR(64),
    latitude DOUBLE PRECISION,
    longitude DOUBLE PRECISION,
    altitude_meters DOUBLE PRECISION,
    velocity_knots DOUBLE PRECISION,
    heading_degrees DOUBLE PRECISION,
    vertical_rate DOUBLE PRECISION,
    timestamp TIMESTAMPTZ NOT NULL
);

Weather Observation Tables

CREATE TABLE weather_observations (
    id SERIAL PRIMARY KEY,
    latitude DOUBLE PRECISION NOT NULL,
    longitude DOUBLE PRECISION NOT NULL,
    timestamp TIMESTAMPTZ NOT NULL,
    precipitation_mm DOUBLE PRECISION,
    weathercode SMALLINT
);

CREATE TABLE weather_condition (
    code SMALLINT PRIMARY KEY,
    description TEXT
);

Writing the Transformation SQL

What is a Common Table Expression (CTE)?

A CTE is a temporary named result set defined with WITH. It makes complex queries readable:

WITH step1 AS (
    -- first calculation
),
step2 AS (
    -- uses step1
)
SELECT * FROM step2;

Think of CTEs as named scratch paper for your query. You break the problem into steps, then combine them.

Flight Transformation

BEGIN;

WITH raw AS (
    SELECT id, timestamptz,
           jsonb_array_elements(raw_json->'states') AS state
    FROM flight_json_data
),
parsed AS (
    SELECT
        state->>0 AS icao24,
        state->>1 AS callsign,
        state->>2 AS country,
        (state->>6)::DOUBLE PRECISION AS longitude,
        (state->>5)::DOUBLE PRECISION AS latitude,
        (state->>7)::DOUBLE PRECISION AS altitude_meters,
        (state->>9)::DOUBLE PRECISION AS velocity_knots,
        (state->>10)::DOUBLE PRECISION AS heading_degrees,
        (state->>11)::DOUBLE PRECISION AS vertical_rate,
        timestamptz
    FROM raw
)
INSERT INTO flights (
    icao24, callsign, country, latitude, longitude,
    altitude_meters, velocity_knots, heading_degrees,
    vertical_rate, timestamp
)
SELECT * FROM parsed;

DELETE FROM flight_json_data;

COMMIT;

Weather Transformation

BEGIN;

WITH raw AS (
    SELECT raw_json, timestamptz
    FROM weather_json_data
),
parsed AS (
    SELECT
        (raw_json->'latitude')::DOUBLE PRECISION AS latitude,
        (raw_json->'longitude')::DOUBLE PRECISION AS longitude,
        (raw_json->'current'->'precipitation')::DOUBLE PRECISION
            AS precipitation_mm,
        (raw_json->'current'->'weathercode')::SMALLINT
            AS weathercode,
        timestamptz AS timestamp
    FROM raw
)
INSERT INTO weather_observations (
    latitude, longitude, precipitation_mm,
    weathercode, timestamp
)
SELECT * FROM parsed;

DELETE FROM weather_json_data;

COMMIT;

Why Transactions?

The BEGIN / COMMIT wrapper ensures atomicity:

  • Either all operations succeed, or none of them do
  • Prevents partial writes and data corruption
  • If the INSERT fails, the DELETE never happens
  • Your data stays consistent even when things go wrong

This is not optional. This is how adults write SQL.

Deploying the Transformation Service

Use the GitHub Template

  1. Go to the db_transform template
  2. Click “Use this template”
  3. Name your repo: weather_flight_db_transform
  4. Create the repository

Add Your SQL

  1. Open the repo on GitHub
  2. Edit the clean.sql file (click the pencil icon)
  3. Paste both transformation queries (flights + weather)
  4. Commit the changes

Deploy on Railway

  1. Click New > Deploy from GitHub Repo
  2. Click “Configure GitHub App” to grant Railway access
  3. Select your weather_flight_db_transform repo
  4. Add environment variable:
Key Value
DATABASE_URL ${{Postgres.DATABASE_PUBLIC_URL}}
  1. Set cron trigger: 0 * * * * (runs hourly, at the top of the hour)

Verify the Transformation

After the first cron run:

SELECT * FROM flights
ORDER BY timestamp DESC LIMIT 10;

SELECT * FROM weather_observations
ORDER BY timestamp DESC LIMIT 10;

If you see structured rows, the transformation is working. Raw JSON in, clean tables out. Beautiful.

Stage 4: Dashboard with Grafana

Views: The Foundation

What is a View?

A View is a virtual table based on a SQL query. It does not store data – it runs the query on demand.

Why views are great for dashboards:

  • Abstract complex joins behind a simple name
  • Reusable by multiple clients (Grafana, APIs, etc.)
  • Restrict access to specific data using Postgres roles
  • Pre-join and pre-aggregate for efficient visualization

Create the Dashboard View

This view joins flights and weather to answer our research question: Are there “no-fly windows” correlated with weather?

CREATE OR REPLACE VIEW flight_weather AS
SELECT
    f.timestamp,
    f.callsign,
    f.altitude_meters,
    f.velocity_knots,
    f.latitude AS flight_latitude,
    f.longitude AS flight_longitude,
    w.precipitation_mm,
    w.weathercode,
    w.latitude AS weather_latitude,
    w.longitude AS weather_longitude
FROM flights f
JOIN weather_observations w
  ON date_trunc('minute', f.timestamp)
   = date_trunc('minute', w.timestamp)
ORDER BY f.timestamp DESC;

Deploying Grafana

Add the Grafana Template

  1. In Railway, click “Create” > “Template”
  2. Search for Grafana
  3. Select the version by Andre Lademann’s Projects
  4. Add these environment variables:
Key Value
GF_SECURITY_ADMIN_USER grafanareader
GF_DEFAULT_INSTANCE_NAME grafanapg
GF_SECURITY_ADMIN_PASSWORD your-password
  1. Leave the 4 pre-configured variables as-is and click Deploy

Enable Serverless Mode

After deployment:

  1. Go to Grafana service Settings
  2. Scroll to Serverless
  3. Toggle Enable Serverless and click Deploy

This makes Grafana sleep when idle and wake on demand. Your wallet will appreciate this.

Securing Database Access

Create a Read-Only Grafana User

Do not give Grafana the keys to the kingdom. Create a restricted user:

CREATE USER grafanareader
WITH PASSWORD 'your_password';

GRANT USAGE ON SCHEMA "public"
TO grafanareader;

GRANT SELECT ON "public".flight_weather
TO grafanareader;

This user can only SELECT from the flight_weather view. Nothing else. Principle of least privilege in action.

Connecting Grafana to Postgres

Step 1: Get PGHOST

  1. Go to your Postgres service in Railway
  2. Under Environment Variables, copy PGHOST
  3. It looks like: postgres.railway.internal

Step 2: Log In to Grafana

  1. Open your Grafana URL from the Deployments tab
  2. Log in with the admin credentials you set

Step 3: Add Data Source

  1. Click Connections > Data Sources
  2. Search for PostgreSQL
  3. Fill in:
Field Value
Host postgres.railway.internal:5432
Database railway
User grafanareader
Password your_password
  1. Click Save & Test

Creating Your First Dashboard

Build a Visualization

  1. Go to Home > “Create your first dashboard”
  2. Click “Add Visualization”
  3. Select your PostgreSQL data source
  4. Choose the flight_weather view as the table
  5. Add timestamp and a data column (e.g., altitude_meters or precipitation_mm)
  6. Click Run Query
  7. Switch between Table Mode and chart visualizations

You now have a live dashboard powered by your pipeline. Go impress someone.

Grafana Persistence (Addendum)

Making Dashboards Survive Restarts

By default, Grafana stores dashboards in SQLite inside the container. Container restarts = dashboards gone. Let us fix that.

  1. Create a grafana database in your Railway Postgres instance (via Beekeeper)
  2. Add these environment variables to the Grafana service:
GF_DATABASE_TYPE=postgres
GF_DATABASE_HOST=postgres.railway.internal:5432
GF_DATABASE_NAME=grafana
GF_DATABASE_USER=postgres
GF_DATABASE_SSL_MODE=disable
GF_DATABASE_PASSWORD=<your-db-password>
GF_SERVER_ROOT_URL=<your-grafana-url>
  1. Redeploy Grafana. Dashboards now persist in Postgres!

Sharing Dashboards Publicly

  1. On a dashboard, click the Share icon
  2. Click External Link
  3. Accept the warning and check the confirmation box
  4. Copy the external link
  5. Test in an incognito window

Your dashboard is now publicly viewable. Data storytelling at its finest.

Stage 5: DB API Bridge (PostgREST)

Why an API?

From Database to REST

Dashboards are great for humans. But what about other applications?

PostgREST turns your Postgres database into a RESTful API automatically. No backend code required.

Key features:

  • Generates REST endpoints for tables, views, and stored procedures
  • Uses PostgreSQL’s native roles for access control
  • Lightweight and open-source

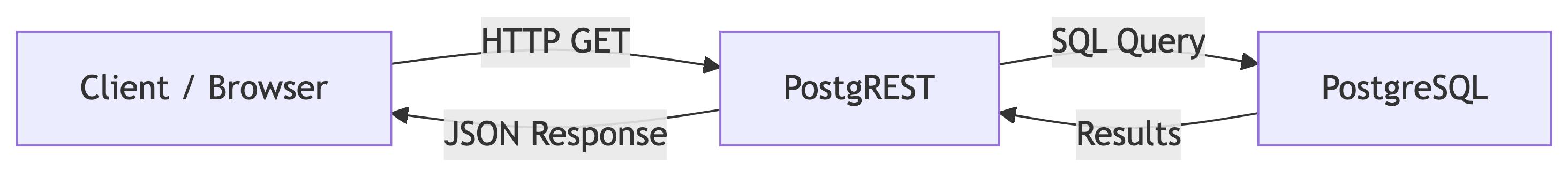

Architecture

Deploying PostgREST

Step 1: Create the Service

  1. Click Create in Railway
  2. Choose Docker Image
  3. Enter: postgrest/postgrest
  4. Click Deploy

Step 2: Configure Networking

  1. Go to Settings tab
  2. Under Public Networking, click Generate Domain
  3. Copy the public URL
  4. Scroll to Serverless, toggle Enable Serverless, and deploy

Step 3: Set Environment Variables

Key Value
PGRST_DB_ANON_ROLE web_anon
PGRST_DB_SCHEMA api
PGRST_DB_URI ${{DATABASE_URL}}
PGRST_OPENAPI_SERVER_PROXY_URI <your public hostname>

Database Permissions for the API

Create a Schema and Role

We expose data through a dedicated api schema with a restricted role:

-- Create the API schema
CREATE SCHEMA IF NOT EXISTS api;

-- Create a view in the API schema
CREATE OR REPLACE VIEW api.general_aviation_weather_view AS
SELECT * FROM flight_weather;

-- Create an anonymous access role
CREATE ROLE web_anon NOLOGIN;
GRANT USAGE ON SCHEMA api TO web_anon;
GRANT SELECT ON api.general_aviation_weather_view
TO web_anon;

Create an Authenticator Role

Instead of connecting as the all-powerful postgres user:

CREATE ROLE authenticator
NOINHERIT LOGIN PASSWORD '<your password>';
GRANT web_anon TO authenticator;
  • NOINHERIT – cannot directly access anything
  • LOGIN – can authenticate from PostgREST
  • GRANT web_anon – can act as the read-only role

Separation of concerns. Even your database roles practice good architecture.

Test the API

Visit your PostgREST URL with the view name appended:

https://<your-domain>.up.railway.app/general_aviation_weather_view

You should see JSON data. If you do, your database is now a REST API. That was disturbingly easy.

Stage 6: API Developer Portal (Swagger)

Why Swagger?

Self-Documenting APIs

An API without documentation is like a library without a catalog. Swagger UI provides:

  • Automatic API documentation from the OpenAPI spec
  • Interactive endpoint testing in the browser
  • Parameter and response schema visualization
  • A shareable portal for API consumers

PostgREST automatically generates an OpenAPI spec. Swagger reads it. They are best friends.

Deploying Swagger UI

Step 1: Create the Service

  1. In Railway, click Create > New Service
  2. Select Docker Image
  3. Enter: swaggerapi/swagger-ui
  4. Click Deploy

Step 2: Set Environment Variable

Key Value
API_URL ${{postgrest.PGRST_OPENAPI_SERVER_PROXY_URI}}

This tells Swagger where to find the OpenAPI spec generated by PostgREST.

Step 3: Generate Public URL

  1. Go to Settings
  2. Under Networking, click Generate Domain
  3. Choose default port: 8080
  4. Click Deploy

Test It

Open the public URL. You should see the Swagger UI loaded with your API documentation. You can:

  • View the general_aviation_weather_view endpoint
  • Expand to see parameters and response schema
  • Run test requests directly from the browser

Your API is now self-documenting, testable, and shareable. Chef’s kiss.

Recap: The Full Pipeline

What We Built

From Web to Portal

Seven Services, One Pipeline

Stage Service Purpose
1 PostgreSQL Central data store
2a web2db (flights) Flight data ingestion
2b web2db (weather) Weather data ingestion
3 db_transform JSON to structured tables
4 Grafana Visualization dashboard
5 PostgREST REST API from database
6 Swagger UI API documentation portal

References

References

  1. Web Scraper Documentation. https://webscraper.io/documentation
  2. Discogs Search. https://www.discogs.com
  3. Docker Documentation. https://docs.docker.com
  4. Railway Documentation. https://docs.railway.app
  5. PostgreSQL JSON Functions. https://www.postgresql.org/docs/current/functions-json.html
  6. OpenSky Network API. https://opensky-network.org/apidoc/rest.html
  7. Open-Meteo API. https://open-meteo.com/en/docs
  8. PostgREST Documentation. https://postgrest.org
  9. Swagger UI. https://swagger.io/tools/swagger-ui/
  10. Grafana Documentation. https://grafana.com/docs/
  11. Crontab Guru. https://crontab.guru/
  12. Beekeeper Studio. https://www.beekeeperstudio.io/
