Lecture 08-1: Web Scraping

DATA 503: Fundamentals of Data Engineering

Author
Affiliation

Lucas P. Cordova, Ph.D.

Willamette University

Published

March 4, 2026

Abstract

This lecture covers web scraping using the Web Scraper Chrome extension. We scrape vinyl record data from Discogs, including artist names, album titles, and ratings from detail pages using a two-level scraping approach with Element (scroll) selectors.

Web Scraping with Web Scraper

What is Web Scraping?

Web scraping is the process of automatically extracting data from websites. Instead of manually copying and pasting, we configure tools to do it for us.

Why? Because life is too short to copy 10,000 rows by hand. Your fingers will thank you. 🙏

Use Cases for Web Scraping

  • Price monitoring (e-commerce, travel)
  • Research data collection (academic datasets)
  • Job posting aggregation
  • Social media analysis
  • Building datasets that do not exist as downloads

The Ethics and Legality Disclaimer ⚖️

Before you go scraping the entire internet:

  • Check the site’s robots.txt file (e.g., https://example.com/robots.txt)
  • Respect rate limits, do not hammer servers
  • Check Terms of Service
  • Do not scrape personal/private data
  • When in doubt, ask. Or just do not do it.

We are responsible data engineers, not chaos agents. 😇

Web Scraper Chrome Extension

What is Web Scraper?

Web Scraper is a free Chrome/Firefox extension that lets you scrape websites without writing code. It uses a point-and-click interface to define what data to extract.

Think of it as “I can not code a spider, but I can click on things.” 🕷️

Install it from:

After installation, restart your browser (or just use new tabs).

Accessing Web Scraper

  1. Open Chrome DevTools (F12 or Cmd+Opt+I on Mac)
  2. Look for the Web Scraper tab in DevTools
  3. If you do not see it, you may need to click the >> arrows to find it

That is where all the magic happens. ✨

Key Terminology: Sitemap

A Sitemap is your scraping project. It defines:

  • Start URL(s) where the scraping begins
  • Selectors what data to extract and how to navigate
  • The overall structure of your scrape

Think of it like a treasure map, except the treasure is data and X marks the CSS selector. 🗺️

Key Terminology: Selectors

Selectors are the building blocks of your sitemap. Web Scraper has three categories:

Category Purpose Examples
Data extraction Pull data from elements Text, Link, Image, Table, HTML
Link navigation Follow links to other pages Link selector
Element grouping Group related data together Element selector, Element click, Element scroll

Key Terminology: Selector Tree

Selectors are organized in a tree structure. The scraper executes them top-down:

Parent selectors define scope. Child selectors extract data within that scope.

Key Terminology: Multiple Records

When a selector has Multiple checked, it means:

  • “There are many of these on the page”
  • The scraper will iterate through all matching elements
  • Each match becomes a separate data row

For example: a product listing page has 25 items. The Element selector with Multiple checked will find all 25. 📋

The Select Tool

Web Scraper’s point-and-click tool:

  1. Click Select in the selector creation interface
  2. Yellow highlight = element that will be selected on click
  3. Red highlight = already selected element
  4. Click again to deselect

Keyboard shortcuts (after clicking Select):

Key Action
P Expand to parent element
C Narrow to child element
S Select without clicking (for dynamic elements)
Shift Select multiple element groups

Element Preview and Data Preview

Always use these before running a scrape:

  • Element Preview highlights which elements on the page match your selector (visual check)
  • Data Preview shows the actual data that will be extracted (sanity check)

If the preview looks wrong, the scrape will be wrong. Trust the preview. 🔍

Element Scroll Selector

The Element (scroll) selector is used for pages that load content dynamically as you scroll (infinite scroll or lazy loading). It:

  • Automatically scrolls the page to load more content
  • Groups repeating elements into containers
  • Works great for modern sites that load items on demand

This is the selector type we will use for Discogs search results, since the page loads items as you scroll down.

Range URLs for Multi-Page Scraping

Instead of relying on pagination buttons, use range URLs:

Pattern Generates
https://example.com/page/[1-3] /page/1, /page/2, /page/3
https://example.com/page/[001-100] /page/001, /page/002, … (zero-padded)
https://example.com/page/[0-100:10] /page/0, /page/10, /page/20, …

This is how we handle multi-page scrapes without needing a pagination selector.

Demo: Scraping Discogs

Our Target: Discogs Most Collected Releases

We are going to scrape the Most Collected Releases from Discogs, the world’s largest music database. 🎵

We want: album name, artist name, and then we will follow the link to each album’s detail page to grab the average rating and number of ratings. This is a two-level scrape.

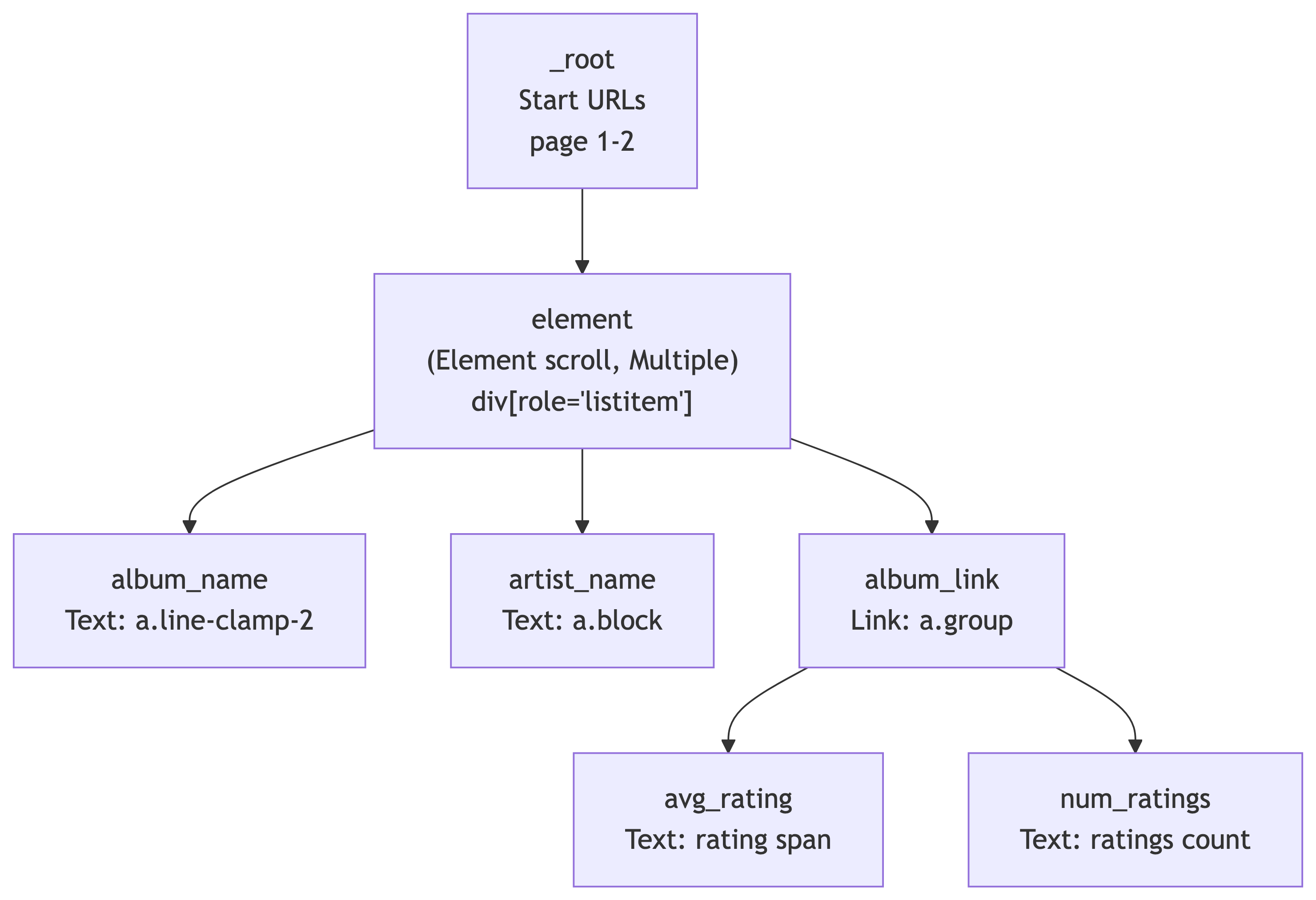

The Sitemap Structure

Our scrape has two levels: the search results page and each album’s detail page:

The element selector (Element scroll) handles grouping each search result card. Under it, we extract text (album_name, artist_name) and follow links (album_link) to detail pages where we grab ratings.

Step 1: Create a New Sitemap

  1. Open DevTools (F12 or Cmd+Opt+I) and go to the Web Scraper tab
  2. Click Create new sitemap > Create Sitemap
  3. Sitemap name: discogs5
  4. Start URL: https://www.discogs.com/search?sort=have%2Cdesc&type=release&page=[1-2]

We use [1-2] to scrape the first 2 pages (~50 results). You can increase this later, but start small when testing. 🧪

Step 2: Add the Element Scroll Selector

This groups each search result card on the page and handles scroll-based loading:

  1. Make sure you are at the **_root** level of selectors
  2. Click Add new selector
  3. ID: element
  4. Type: Element scroll
  5. Selector: div[role='listitem']
  6. Check Multiple (there are many result cards per page)
  7. Click Save selector

Why Element (scroll)? Discogs search results load dynamically. The Element scroll selector automatically scrolls to load all items and groups each result card as a container for child selectors.

Step 3: Add the Album Name Text Selector

Navigate into the element selector (click on it), then:

  1. Click Add new selector
  2. ID: album_name
  3. Type: Text
  4. Selector: Click Select, then click an album title in the search results. The CSS selector should be a.line-clamp-2
  5. Leave Multiple unchecked (one album name per result card)
  6. Click Save selector

Use Data Preview to verify it is grabbing album names correctly. ✅

Step 4: Add the Artist Name Text Selector

Still inside the element selector:

  1. Click Add new selector
  2. ID: artist_name
  3. Type: Text
  4. Selector: Click Select, then click an artist name. The CSS selector should be a.block
  5. Leave Multiple unchecked
  6. Click Save selector

Data Preview should now show artist names alongside album names.

Step 6: Add Detail Page Selectors

Navigate into the album_link selector. Now we define what to extract from each album’s detail page.

Average Rating:

  1. Click Add new selector
  2. ID: avg_rating
  3. Type: Text
  4. Selector: Navigate to any album detail page manually to build this selector. Find the average rating value. The CSS selector should be .section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)
  5. Click Save selector

Number of Ratings:

  1. Click Add new selector
  2. ID: num_ratings
  3. Type: Text
  4. Selector: Find the total number of ratings on the detail page. The CSS selector should be #release-stats li:nth-of-type(4) a
  5. Click Save selector

The Complete Selector Tree

Your sitemap should now look like this:

Selector ID Type Parent CSS Selector
element Element scroll _root div[role='listitem']
album_name Text element a.line-clamp-2
artist_name Text element a.block
album_link Link element a.group
avg_rating Text album_link .section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)
num_ratings Text album_link #release-stats li:nth-of-type(4) a

Importing the Sitemap Directly

If you prefer to skip building it manually, you can import the complete sitemap JSON:

  1. Go to the Web Scraper tab in DevTools
  2. Click Create new sitemap > Import Sitemap
  3. Paste this JSON and click Import:
{
  "_id": "discogs5",
  "startUrl": [
    "https://www.discogs.com/search?sort=have%2Cdesc&type=release&page=[1-2]"
  ],
  "selectors": [
    {
      "id": "element",
      "parentSelectors": ["_root"],
      "selector": "div[role='listitem']",
      "multiple": true,
      "type": "SelectorElementScroll",
      "delay": 2000
    },
    {
      "id": "album_name",
      "multiple": false,
      "parentSelectors": ["element"],
      "selector": "a.line-clamp-2",
      "type": "SelectorText",
      "version": 2
    },
    {
      "id": "artist_name",
      "multiple": false,
      "parentSelectors": ["element"],
      "selector": "a.block",
      "type": "SelectorText",
      "version": 2
    },
    {
      "id": "album_link",
      "linkType": "linkFromHref",
      "multiple": true,
      "parentSelectors": ["element"],
      "selector": "a.group",
      "type": "SelectorLink",
      "version": 2
    },
    {
      "id": "avg_rating",
      "multiple": false,
      "parentSelectors": ["album_link"],
      "selector": ".section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)",
      "type": "SelectorText",
      "version": 2
    },
    {
      "id": "num_ratings",
      "multiple": false,
      "parentSelectors": ["album_link"],
      "selector": "#release-stats li:nth-of-type(4) a",
      "type": "SelectorText",
      "version": 2
    }
  ]
}

Step 7: Preview and Validate

Before running the full scrape, always check:

  1. Click Element preview on each selector. Are the correct elements highlighted?
  2. Click Data preview on album_name and artist_name. Do they show real data?
  3. Navigate to a detail page manually and test avg_rating and num_ratings element previews there

If the preview looks wrong, the scrape will be wrong. Trust the preview. 🔎

Step 8: Run the Scrape

  1. Click Scrape in the Sitemap menu
  2. Set Request interval: 2000ms (be polite to Discogs servers)
  3. Set Page load delay: 2000ms
  4. Click Start scraping

A popup window will open and start loading pages. It will visit each search results page, extract album/artist names, then follow each album link to grab ratings from the detail pages. Do not close the popup. Go get coffee ☕ this is a two-level scrape so it takes longer than a single-page scrape.

Step 9: Export the Data

Once scraping is complete:

  1. Click Browse to preview scraped data
  2. Click Export data as CSV
  3. Save the file. This is your raw dataset! 📊

Congratulations, you just built a two-level scraping pipeline with zero code. You scraped search results AND followed links to detail pages for extra data. Your future self who has to write Python scrapers will be jealous. 😎

What We Scraped

Field Source Description
album_name Search results page Album/release title
artist_name Search results page Artist or band name
album_link Search results page URL to the album detail page
avg_rating Album detail page Average user rating (e.g., 4.21)
num_ratings Album detail page Total number of user ratings

This is our raw data. In a real pipeline, we would clean, transform, and load this into a database.

In-Class Exercise: Top Vinyl of the 2010s

Your Turn: Scrape the Top 200 Vinyl Releases of 2010-2020 🎯

Work individually or with a neighbor. You are going to build your own sitemap from scratch using what we just learned.

The Use Case: Discogs tracks which releases are the most collected by users worldwide. We want to find the most collected vinyl releases from the 2010s decade and pull rating data from each album’s detail page.

The Search URL

Start with this base URL in your browser:

https://www.discogs.com/search?sort=have%2Cdesc&type=release&year1=2010&year2=2020&format_exact=Vinyl

This applies the following filters:

Filter Value
Sort Most Collected (have, descending)
Type Release
Year Range 2010 to 2020
Format Vinyl

Open this URL in Chrome and verify you see vinyl releases sorted by collector count.

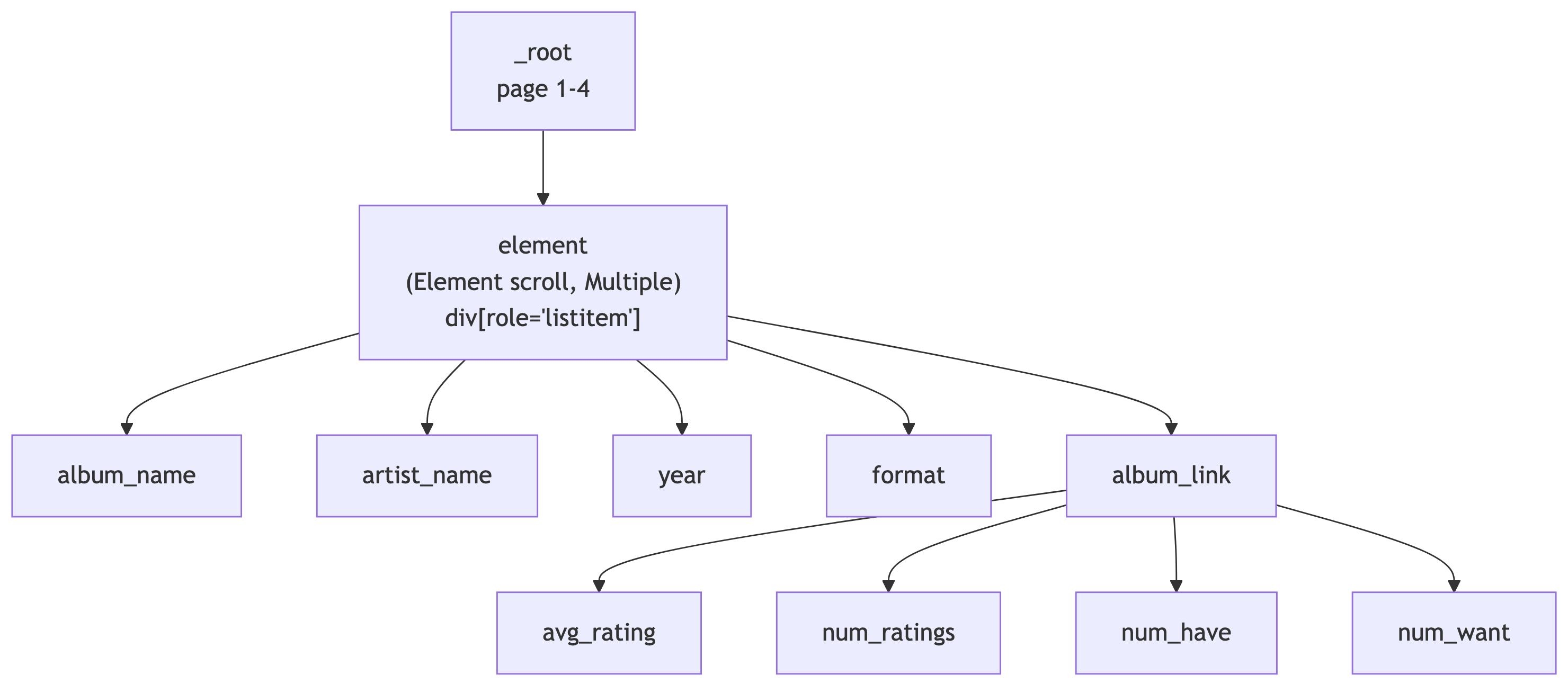

Your Task

Build a Web Scraper sitemap that:

  1. Scrapes the first 4 pages of results (~100 releases) using range URLs
  2. Uses an Element scroll selector with div[role='listitem'] to group each result
  3. Extracts the artist name and album name from each search result
  4. Follows the link to each album’s detail page
  5. Extracts the average rating and number of ratings from the detail page

Bonus fields (if you finish early):

  • Year and format info from the search results page
  • “Have” count and “Want” count from the detail page

Hints 💡

  • Your sitemap structure should look very similar to the discogs5 demo we just built
  • Use an Element scroll selector at the root level with div[role='listitem']
  • Use a Link selector to navigate to detail pages
  • Use the Select tool and Data Preview to verify each selector before moving on
  • If a CSS selector does not work, try using P (parent) or C (child) keys while the Select tool is active

Expected Output

When you export to CSV, each row should have:

Column Example Value
artist_name Adele
album_name 21
album_link https://www.discogs.com/release/…
avg_rating 4.18
num_ratings 1,247

You have 15 minutes. When you are done (or stuck), we will compare sitemaps. ⏱️

Solution: The Complete Sitemap

Here is a working sitemap for this exercise. You can import it via Create new sitemap > Import Sitemap:

The solution sitemap JSON is available as top100_2010-2020.json on the course site.

Selector ID Type Parent CSS Selector
element Element scroll _root div[role='listitem']
album_name Text element a.line-clamp-2
artist_name Text element a.block
year Text element span.block.text-xs
format Text element p.text-xs.truncate
album_link Link element a.group
avg_rating Text album_link .section_Odw8o div div ul:nth-of-type(1) span:nth-of-type(2)
num_ratings Text album_link #release-stats li:nth-of-type(4) a
num_have Text album_link #release-stats li:nth-of-type(1) a
num_want Text album_link #release-stats li:nth-of-type(2) a

References

References

  1. Web Scraper Documentation. https://webscraper.io/documentation
  2. Discogs Search. https://www.discogs.com
